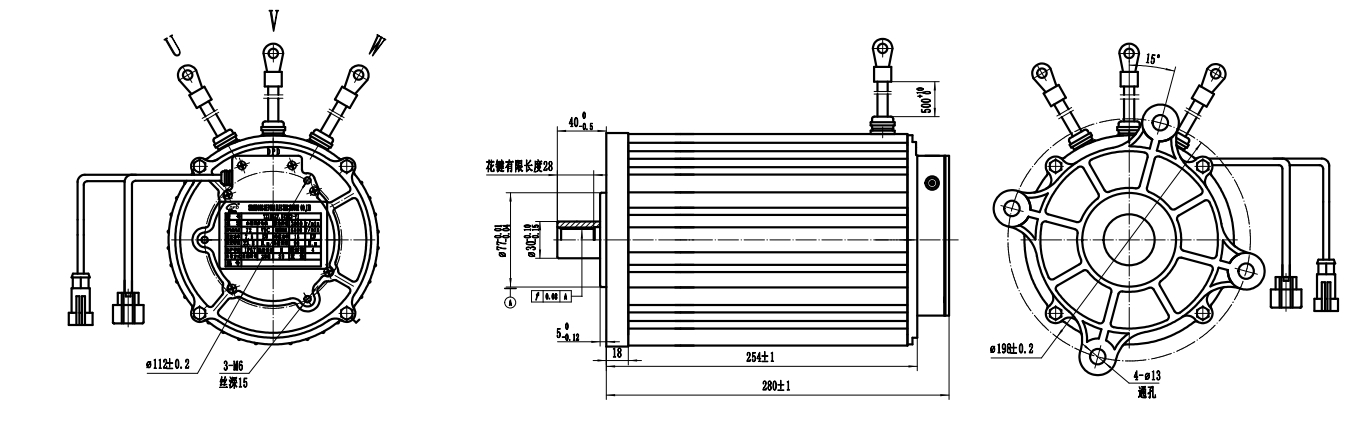

PMSM 7.5KW72VDC motor for electric truck

PMSM model number: XD155X7.572H2-YJ
Rated power: 7.5KW
Battery voltage: 72VDC
Rated speed: 3000r/min
Rated torque: 23.8Nm
Cooling method: natural cooling
Duty: S9
Maximum speed: 6500r/min
Peak torque: 90N.m
Protection level: IP67
Pole number: 4
Insulation level: H
