Electric Motor
-
5D120-RV40 DC geared reduction motor
Industry-specific attributes
Speed(RPM)2100RPMContinuous Current(A)13AEfficiencyIE 1Other attributes
Warranty1yearPlace of OriginChinaBrand NameXINDAModel Number5D120-RV40UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOMETypeGEAR MOTORTorquevariousConstructionPermanent MagnetCommutationBrushProduct NameLinear ActuatorApplicationAutomatic ProductMotor typeRV gear reduction DC motor
Place of OriginMainland China
Rated Voltage12VPower120W (Can Customize)Size90*167mm
Packaging and delivery
Selling Units:Single itemSingle package size:L43*W26*21cmSingle gross weight:2.5kg -
4KW AC oil pump motor
Motor code: JXQD-4-72-HH
Power: 4KW
Rated voltage: 72VDC
Rated speed: 2300rpm
Insulation grade: H
Rated frequency:80Hz
Rated current: 65A
Pole number: 4
-
PMSM 7.5KW72VDC motor for electric truck
PMSM model number: XD155X7.572H2-YJ
Rated power: 7.5KW
Battery voltage: 72VDC
Rated speed: 3000r/min
Rated torque: 23.8Nm
Cooling method: natural cooling
Duty: S9
Maximum speed: 6500r/min
Peak torque: 90N.m
Protection level: IP67
Pole number: 4
Insulation level: H -
3420 DC motor
12V DC motor 3420 permanent magnet micro high speed speed regulating motor small motor 24V high power 30W
-
-
-
5IK60GN-C 220V60W AC gear reduction motor forward and reverse single-phase motor high power low speed motor
Speed selection: 500 revolutions per minute 300 revolutions per minute 200 revolutions per minute 100 revolutions per minute 60 revolutions per minute 50 revolutions per minute 30 revolutions per minute 20 revolutions per minute 10 revolutions per minute Other speeds Function selection: ordinary
brake
Parameter information brand XD model 5I/RK60GN-C Origin Chinese mainland Power supply mode Alternating current Voltage
220V
-
XD5D200-24GU-22S 200W DC high power gear reduction motor 12V24V micro speed regulating motor forward and reverse slow speed motor
Parameter information
brandXinda MotormodelXD5D200-24GU-22SOriginChinese mainlandVoltage24VPower supply modeDirect currentsort by typeMotor without brake, Motor with brakepower200WVoltage12V/24VMaximum current15AOutput speed10 rpm – 1000 rpmMotor TypeDC gear motor -
5IK40RGU-C AC 220v speed regulating motor 40w adjustable stepless speed change forward and reverse small gear reduction motor single phase
Parameter information
model 5IK40RGU-COrigin Chinese mainlandPower supply mode Alternating currentVoltage 220V -
B3020S Outer rotor BLDC motor
3 -Phase Brushless DC Motor -Typical Application
Home Application: Small Electric Fanner, USB Fan, Small Air Fresher, Electric CookerHome Appliances: Small Power Electric Fan, USB Fan, Small Power Air Fresher, Electric Cooker
Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan Medical Apparatus: Medical Pump, Medical Blower, Super-Silence Fan
Industry Equipment: Electric Valve, Actuator
Business Equipment: Printer, Copier, Projector
Personal Care: Shaver, Hair Dryer, Massager
-

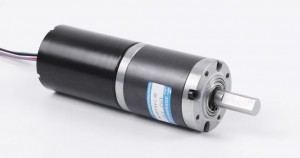

B4260M Brushless Motor
Brushless DC Motor- Typical Application
Automobile Parts: Pump, Fan, Actuator, Parking Heater
Automotive parts: pumps, fans, actuators, parking heaters
Home Application: White Goods, Small Appliance, Fanner, Coffee Machine,
Meat Grinder
Household appliances: white appliances, small appliances, bladeless fans, bladed fans, coffee machines, meat grinders
Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,
Centrifugal Machine
Medical equipment: medical pumps, surgical instruments, mixers, centrifuges
Business Equipment: Printer, Copier, Projector, ATM, Vending Machine
Business equipment: printers, copiers, projectors, ATMs , vending machines
Power Tools: Screwdriver, Drill, Air Compressor
Power tools: electric screwdriver, electric drill, gas compressor
Personal Care: Hair Dryer, Massager, Vibrator
-
B3740S BLDC Motor
Brushless DC Motor-Typical Application
Brushless DC Motor - Typical Applications
Rehabilitation Apparatus: Fascia Gun, Massager
Rehabilitation equipment: fascia gun, massager
Industry & Business Equipment: Pumps, Valves, Fan, Linear Direct Drive
Industrial and commercial equipment: pumps, valves, fans, linear direct drives
Others: Micro Direct Drive PTZ(pan-tilt-zoom)
Others: Small direct drive gimbal
